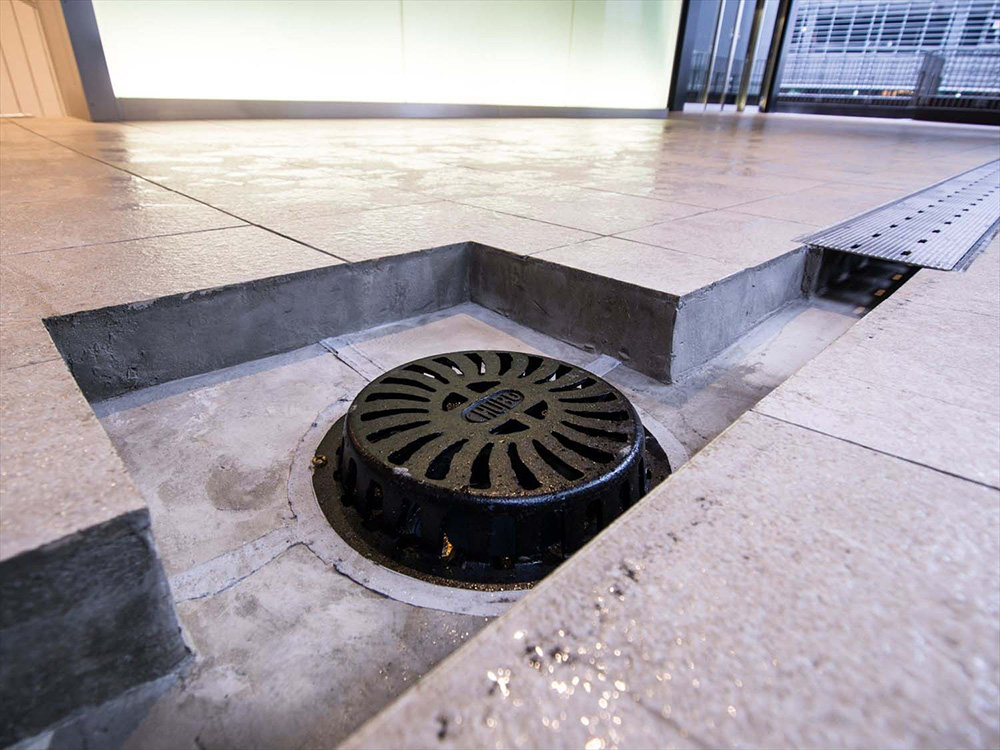

ルーフドレン 防水層張掛け幅50mm RSLG-5S

ルーフドレン 防水層張掛け幅50mm
型 式
RSLG-5S
排水形式
たて引き
材質
鋳鉄
施工方法
打込用
防水方法
アスファルト・シート防水
接続方法
ねじ込式
使用場所
フロアー・屋上
呼ビ径 型式記号 DXF DWG PDF PDF一覧 相関図 施工要領
50 RSLG-5S-50 dxf dwg pdf pdf pdf pdf
65 RSLG-5S-65 dxf dwg pdf pdf pdf pdf
75 RSLG-5S-75 dxf dwg pdf pdf pdf pdf
100 RSLG-5S-100 dxf dwg pdf pdf pdf pdf
125 RSLG-5S-125 dxf dwg pdf pdf pdf pdf
150 RSLG-5S-150 dxf dwg pdf pdf pdf pdf
