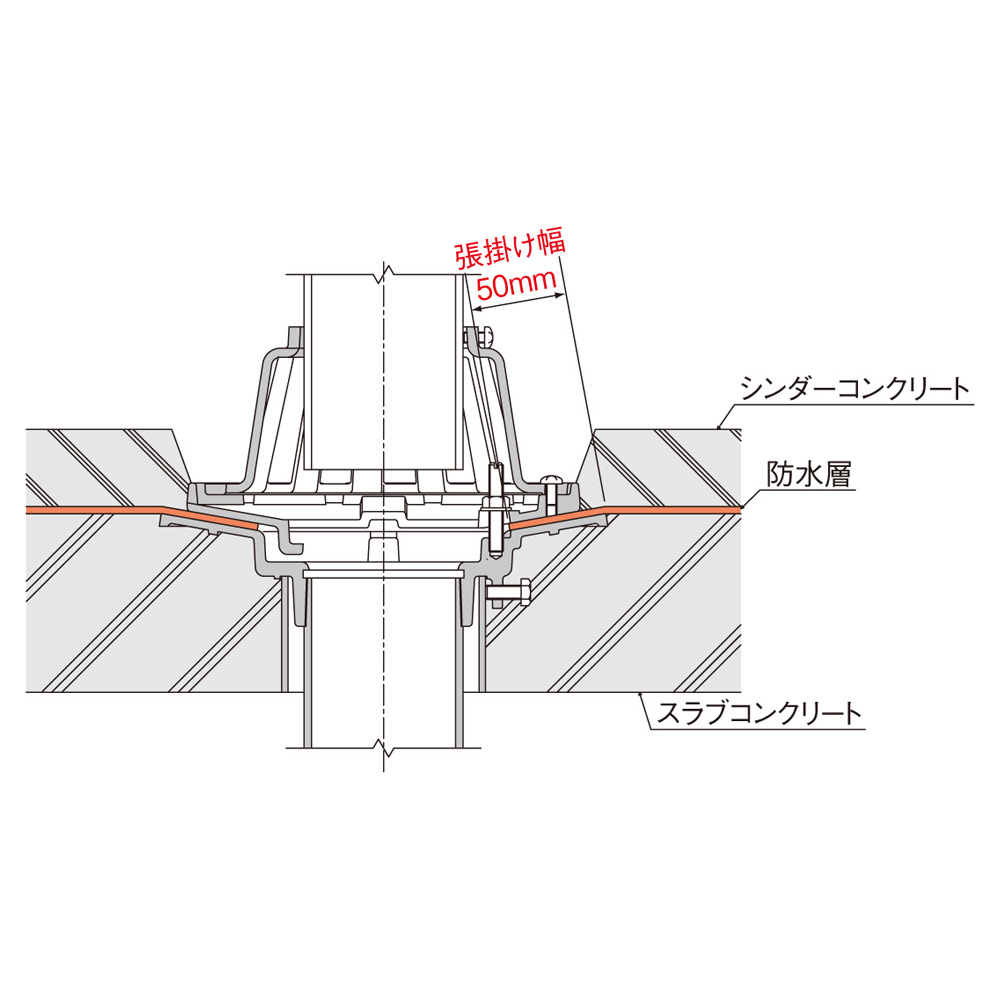

ルーフドレン 防水層張掛け幅50mm BSG-5S

ルーフドレン 防水層張掛け幅50mm
型 式
BSG-5S
排水形式
たて引き
材質
鋳鉄
施工方法
打込用
防水方法
アスファルト・シート防水
接続方法
ねじ込式
使用場所
バルコニー中継
呼ビ径 型式記号 DXF DWG PDF PDF一覧 相関図 施工要領
50 BSG-5S-50 dxf dwg pdf pdf pdf pdf
65 BSG-5S-65 dxf dwg pdf pdf pdf pdf
75 BSG-5S-75 dxf dwg pdf pdf pdf pdf
100 BSG-5S-100 dxf dwg pdf pdf pdf pdf
125 BSG-5S-125 dxf dwg pdf pdf pdf pdf
150 BSG-5S-150 dxf dwg pdf pdf pdf pdf
